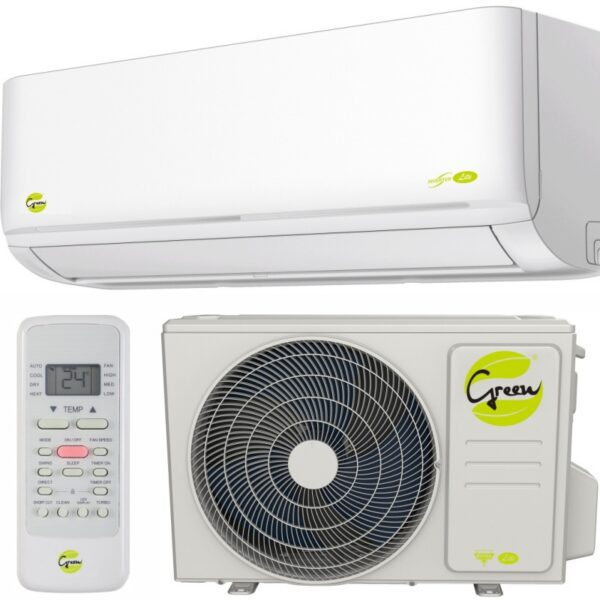

36,000 BTU/HR Midwall Split Inverter Aircon

R23749,99

Estimated delivery date: 8 October to 16 October

Product warranty: 2 years

Product tags: 36000btu, aircon, inverter

Description

Model CM-AS-36UW4SDKVQ00
Capacity:
Cooling:
36,000Btu/h
9,100W
Heating
36,000Btu/h
9,200W
Power Input Cooling: 2,835W
Heating: 2,548W
Air Circulation: 1,680 CMH Max
Moisture Removal: 2.9 L/H.r
EER: 3.21 W/W
COP: 3.61 W/W
Refrigerant type / weight: R410A / 2,200g
Noise Level:
Indoor unit: 50 (High) 45 (Low) dB(A)
Outdoor unit: 64 dB(A)
Power Supply: 220-240/50/1 V-Hz-Ph
Rated Current:
Cooling: 14.8A
Heating: 14.3A
Compressor Parameter:
Model: ATM240D57UMT
Type: Rotary
MFG: GMCC
Expansion Device: Throttling Pipe
Evaporator: Copper tube and Aluminum Fin
Condenser: Copper tube and Aluminum Fin
Pipe:
Liquid: 9.52 / 3/8″ mm/inch
Gas: 15.87 / 5/8″ mm/inch
Fin type: Hydrophilic Aluminium
Tybe outside dia. and type: Ф7mm Innergroove Tube
Outdoor coil
Fin type: Hydrophilic Aluminium
Tybe outside dia. and type: Ф7mm Innergroove Tube
Net Dimension (W x D x H):
Indoor unit: 1,350×266×367 mm
Outdoor unit: 885×366×795 mm
Net Weight:
Indoor unit: 19.5 Kg
Outdoor unit: 60 Kg
Packing Dimension (W x D x H):
Indoor unit: 1,425×325×435 mm
Outdoor unit: 1,050×500×890 mm
Gross Weight:
Indoor unit Kg 23
Outdoor unit: 66 Kg
Features
Display on Front Panel: LED
LCD Wireless Remote Controller: Yes
Removable and Washable Panel: Yes
Washable PP Filter: Yes
Dimmer: Yes
24 Hours Timer: Yes
Timer ON/OFF: Yes
5 Speed and Auto Indoor Fan Control: Yes
Silent Mode: Yes
Horizontal Auto Swing Louver: Yes
Manual Adjustable Vertical Louver: Yes
Top Down Horizontal Louvers Features for Cooling Mode: Yes
Sleep Function: Yes
Super Function: Yes
Compressor Indicator: Yes
Auto Restart: Yes
Auto Defrost: Yes
Cold Air Protection: Yes
Warranty-2 years(please see warranty form)
*MUST BE INSTALLED BY A QUALIFIED AIRCON TECHNICIAN

Product Information

This high-capacity inverter midwall split air conditioner is engineered for powerful cooling and heating in large residential or commercial spaces. With efficient inverter technology, robust airflow, and a comprehensive range of comfort features, it delivers reliable year-round climate control with reduced energy consumption.

Specifications

Capacity

Cooling: 36,000 BTU/h (9,100W)
Heating: 36,000 BTU/h (9,200W)

Power Input

Cooling: 2,835W
Heating: 2,548W

Performance

Air Circulation: Up to 1,680 m³/h
Moisture Removal: 2.9 L/h
EER: 3.21 W/W
COP: 3.61 W/W

Electrical

Power Supply: 220–240V / 50Hz / 1 Phase
Rated Current:
- Cooling: 14.8A
- Heating: 14.3A

Refrigeration System

Refrigerant: R410A (2,200g)
Compressor: GMCC Rotary (Model: ATM240D57UMT)
Expansion Device: Throttling Pipe

Heat Exchangers

Evaporator: Copper tube with aluminium fins
Condenser: Copper tube with aluminium fins
Fin Type: Hydrophilic aluminium
Tube Type: Ø7mm inner-groove tube

Piping

Liquid Line: 9.52mm (3/8″)
Gas Line: 15.87mm (5/8″)

Noise Level

Indoor Unit: 50 dB(A) High / 45 dB(A) Low
Outdoor Unit: 64 dB(A)

Dimensions (W × D × H)

Indoor Unit: 1,350 × 266 × 367 mm
Outdoor Unit: 885 × 366 × 795 mm

Weight

Net Weight:
- Indoor: 19.5 kg
- Outdoor: 60 kg
Gross Weight:
- Indoor: 23 kg
- Outdoor: 66 kg

Features

LED front panel display
LCD wireless remote control
Removable and washable panel
Washable PP filter
24-hour timer with ON/OFF function
5-speed and auto indoor fan control
Silent mode
Horizontal auto swing louver
Manual vertical louver adjustment
Top-down horizontal louvers for cooling
Sleep mode and Super function
Compressor operation indicator
Auto restart and auto defrost
Cold air protection

Designed for dependable performance and user comfort, this 36,000 BTU inverter air conditioner is a strong solution for maintaining consistent indoor temperatures while optimizing energy efficiency.
